The outward opening terrace door is used in all types of buildings to access a terrace, patio or spacious balcony. It is suitable for rooms with minimal space and is the preferred choice for fire exits with a non-locking handle.
The doors are side hung with concealed hinges and are locked with a single handle on the inside that operates a multi-locking point mushroom bolt mechanism with a night vent position. These doors are available with glazing bars, styling bars or panels as required. Double doors have a French casement floating-mullion. A 15 mm. low threshold is available with this door.
Correct installation and maintenance is important to ensure full warranty coverage.
To ensure that the windows and doors function and operate optimally, it is important that they are installed correctly. Incorrect installation may result in product failure which is not covered by the warranty.
If you have any questions regarding the installation of the elements, please call our Service Department on tel. 01582 860 940. They will be happy to help you.
When unloading and handling the elements, use tools and methods which do not cause damage the elements or the health of those on site.
Upon receipt, the purchaser must check that the consignment complies with the agreement and that the elements are free from apparent defects, faults or transportation damage. If there is any cause for complaint, please notify Idealcombi’s Service Department on tel. 01582 860 940 before installing the elements.
Stickers and cork chips on window glass should be removed 1-2 weeks after receipt. Corner protection, protective films and other packaging must only be removed before installing the elements.
If stored outdoors, the elements must be placed on battens or pallets to keep them clear of the ground. The elements must be covered with a suitable and secure material to protect them from precipitation and dirt. Allow for sufficient ventilation around the elements in order to reduce the risk of condensation forming underneath the covering and excessive heat building up due to direct sunlight. Individual window elements should be stored under a roof structure, in a container or preferably inside.
Our windows and doors are supplied with a small tin of paint in their particular colour. The paint is intended for repairing any minor damage caused during installation, but can also be used subsequently. Idealcombi’s Service
Department is always willing to offer help and advice on surface treatment maintenance and on where to buy additional paint in a particular colour for later use.
Correct installation and maintenance is important to ensure full warranty coverage.
To ensure that the windows and doors function and operate optimally, it is important that they are installed correctly.
Incorrect installation may result in product failure which is not covered by the warranty.
If you have any questions regarding the installation of the elements, please call our Technical Department on tel. 01582 860 940.
They will be happy to help you.
When unloading and handling the elements, use tools and methods which do not damage the elements.
Upon receipt, the purchaser must check that the consignment complies with the agreement and that the elements are free from apparent defects, faults or transportation damage. If there is any cause for complaint, please notify Idealcombi’s Technical Department
on tel. 01582 860 940 before installing the elements.
Stickers and cork chips on window glass and other protective packaging must only be removed before installing the elements.
If stored outdoors, the elements must be placed on battens or pallets to keep them clear of the ground. The elements must be covered with a suitable and secure material to protect them from precipitation and dirt. Allow for sufficient ventilation around the elements in order to reduce the risk of condensation forming underneath the covering and excessive heat building up due to direct sunlight.
Individual window elements should be stored under a roof structure, in a container or preferably inside.
Our doors and windows are supplied with a small tin of paint in their particular colour and with this Installation manual.
The paint is intended for repairing any minor damage caused during installation, but can also be used subsequently.
Idealcombi’s Technical Department is always willing to offer help and advice on surface treatment maintenance and on where to buy additional paint in a particular colour.
Correct installation is important for the function and life of the elements. The installation should therefore be carried out by professional fitters of windows and external doors.
The instructions in this manual cover some of the main issues – but not every detail – which may be relevant during installation.
Back boards on fully insulated spandrel panels are loosely fitted. After installation the cavity is insulated and a damp membrane fitted. Then the back board is sealed and fixed with nails.
The window is usually placed within the outer leaf construction of the wall. It should be fitted centrally giving uniform gaps between the frame and structure – ideally the gaps should be 10 to 15mm. The window should be installed with the frame plumb both
horizontally and vertically and should be adjusted and fixed to ensure the correct closing position between the frame and sash.
Securing, general
Windows and external doors should always be fixed to the building structure using mechanical fixings such as frame bolts / screws.
If any foaming material is used to fill the gap between the outer frame surface and the structure the element must be fixed first using mechanical fixings.
Sealant
The sealant work must be carried out in accordance with sealant manufacturers recommendations and current standards.
When filling gaps with insulation (expanding foam) never put in too much so that it bows the frame. After the expanding foam has cured a waterproof sealant should be applied to the outside (see paragraph on sealant types). To make sure you have enough depth
(in accordance with the sealant manufacturers recommendations) you may have to rake back the expanding foam insulation.
Sealant types
There are a wide range of sealing products to choose from for use between frames and outer walls.
The two most common types are:
– Plastic or elastic mastic
– Asphalt saturated plastic foam (Illmod sealing tapes)
Please refer to sealant manufacturers guide lines to ensure correct product and size before applying.
In order to preserve the wood and reduce heating consumption, it is important that the sealant stays intact. The sealant should therefore be inspected at least once a year, and any flaws should be remedied using the same type of sealant as the original. In case
of any major flaws, all the sealing material must be replaced. In such cases, it must be assessed whether a different type of sealant would be more suitable than the existing one.
Fixing and distances for jambs and head are the same as for timber threshold. Screws in 15 mm threshold must be sealed.
When positioning the window/door before fixing, never use a hammer directly on the PUR section of the frame. And never use a hammer on the outer part of the PUR.
Positioning the window/door before fixing can be done with wedges. Wedges are to be placed at the corners to avoid the PUR frame bending or damaging the corner joints.
Place permanent wedging under jambs and any mullions to ensure that the weight of the window/door element is supported by the underlying brickwork/construction (A).
For double doors it is important to use permanent packers under jambs and floating mullions to ensure the weight can be supported by the surrounding construction (A). If the distance between packers is greater than 1000 mm another packer must be added in between (A1).
The cill/threshold must be able to carry the weight of a person and must be level and straight. It can under no circumstances bend up or down.
Place permanent wedging at the bottom of the jambs on the hinge side of the element (B).
When securing, ensure that the point can absorb compressive forces.
Place permanent wedging at the top of the jambs on the hinge side of the element (C). When securing, ensure that the point can absorb tensile forces.
Place permanent wedging at the top of the jambs in the closing side of the element (D); when securing, this wedging must ensure that the point can absorb compressive forces. A permanent packer by the lower jamb on the closing side will ensure a stronger installation (E). Ensure tensile forces can be absorbed.
For increased security and strength a permanent packer can be placed behind ironmongery fix points and locking points.
The jambs must be plumb and square.
When fitting double doors, it is important that the two door leafs have tight seal where they meet and that the head of the two doors are aligned perfectly.
The head can under no circumstances bend up or down. The tolerance on diagonal measurements is ±2 mm.
Permanent wedging on the frame head may only be used if the load from any window/door element above does not subject the element to stress apart from on the jambs and mullions. The frame head must not bow downward.
Figure: 5
Figure: 6
The door must be permanently wedged to support the weight of people walking on it. This is best done with packing material under the jambs and mullions, to ensure the weight can be transferred to the underlying structure. Packers must be used with a max. distance of 300 mm between them (A).
The sill/threshold must be level and straight. It can under no circumstances bend up or down.
Place permanent wedging at the bottom of the jambs on the hinge side of the element (B). When securing, ensure that the point can absorb compressive forces.
Place permanent wedging at the top of the jambs on the hinge side of the element (C). When securing, ensure that the point can absorb tensile forces.
Place permanent wedging at the top of the jambs in the closing side of the element (D); when securing, this wedging must ensure that the point can absorb compressive forces. A permanent packer by the lower jamb on the closing side will ensure a stronger installation (E). Ensure tensile forces can be absorbed.
For increased security and strength a permanent packer can be placed behind ironmongery fix points and locking points.
The jambs must be plumb and square.
The closing side must be adjusted so it fits the sash and closes fully with a tight seal.
When fitting double doors, it is important that the two door leafs have tight seal where they meet and that the head of the two doors are aligned perfectly.
The head can under no circumstances bend down.
The tolerance on diagonal measurements is ±2 mm.
Permanent wedging on the frame head may only be used if the load from any window/door element above does not subject the element to stress apart from on the jambs and mullions.
Wedging material must be moisture-resistant, 40 mm wide and be placed max. 20 mm behind the frame’s front edge and support both PUR and timber. Depending on sealant placement, it is recommended to use anti slip tape on the packing material according to the FSO sealing guidelines.
Jamb/Head

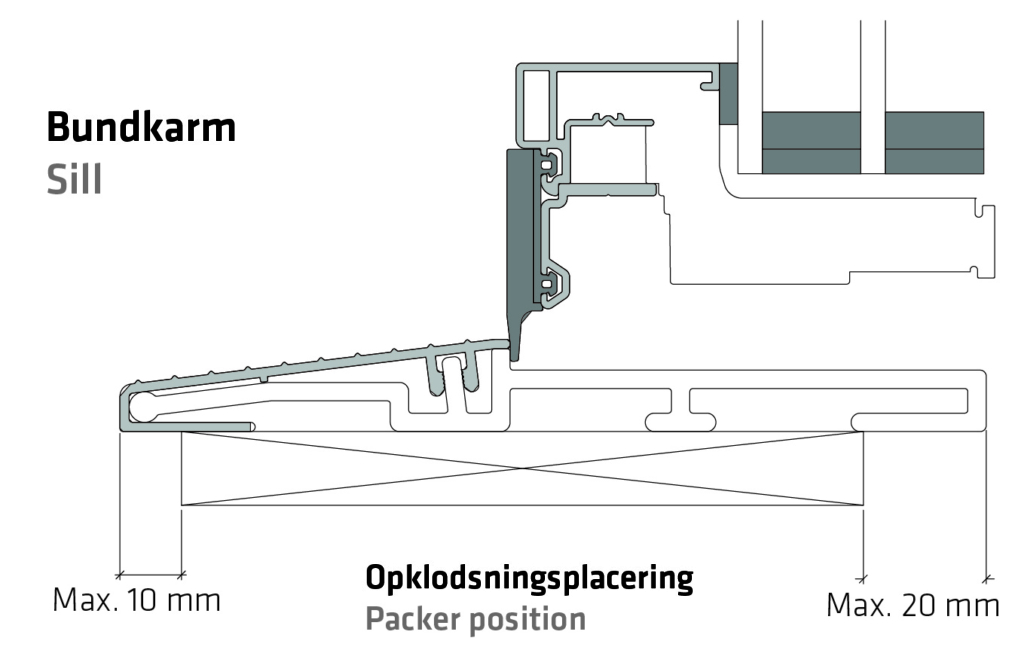

Sill
Wedging material must be moisture resistant and support the full width of the threshold. Permanent wedging at the head and the jambs must be moisture resistant, 40 mm wide and support both timber and idealcore. Depending on sealant placement, it can be recommended to apply anti-slip tape to packing material, according to the FSO sealing recommendations.
Never use the hammer drill setting when pre-drilling through the PUR frame. This will result in material being knocked off the reverse side and thus significantly impair the fixing of the frame. Never screw fix through the frame without wedges in place.
When fixing directly through the frame into the building structure place the fixings in the shaded area shown below, 150 mm from the corners and at a distance of no more than 600 mm between fixings. At the head and cill there can be no more than 600 mm between fixings.
For element widths under 900 mm fixings in head and sill can be omitted. Headed screws must be used when fixing and screw heads countersunk.
Fixing and distances for jambs and head are the same as for timber threshold. Screws in 15 mm threshold must be sealed.
When positioning the window/door before fixing, never use a hammer directly on the PUR section of the frame. And never use a hammer on the outer part of the PUR.
Positioning the window/door before fixing can be done with wedges. Wedges are to be placed at the corners to avoid the PUR frame bending or damaging the corner joints.
Place permanent wedging under jambs and any mullions to ensure that the weight of the window/door element is supported by the underlying brickwork/construction (A).
For double doors it is important to use permanent packers under jambs and floating mullions to ensure the weight can be supported by the surrounding construction (A). If the distance between packers is greater than 1000 mm another packer must be added in between (A1).
The cill/threshold must be able to carry the weight of a person and must be level and straight. It can under no circumstances bend up or down.
Place permanent wedging at the bottom of the jambs on the hinge side of the element (B).
When securing, ensure that the point can absorb compressive forces.
Place permanent wedging at the top of the jambs on the hinge side of the element (C). When securing, ensure that the point can absorb tensile forces.
Place permanent wedging at the top of the jambs in the closing side of the element (D); when securing, this wedging must ensure that the point can absorb compressive forces. A permanent packer by the lower jamb on the closing side will ensure a stronger installation (E). Ensure tensile forces can be absorbed.
For increased security and strength a permanent packer can be placed behind ironmongery fix points and locking points.
The jambs must be plumb and square.
When fitting double doors, it is important that the two door leafs have tight seal where they meet and that the head of the two doors are aligned perfectly.
The head can under no circumstances bend up or down. The tolerance on diagonal measurements is ±2 mm.
Permanent wedging on the frame head may only be used if the load from any window/door element above does not subject the element to stress apart from on the jambs and mullions. The frame head must not bow downward.
Figure: 5
Figure: 6
The door must be permanently wedged to support the weight of people walking on it. This is best done with packing material under the jambs and mullions, to ensure the weight can be transferred to the underlying structure. Packers must be used with a max. distance of 300 mm between them (A).
The sill/threshold must be level and straight. It can under no circumstances bend up or down.
Place permanent wedging at the bottom of the jambs on the hinge side of the element (B). When securing, ensure that the point can absorb compressive forces.
Place permanent wedging at the top of the jambs on the hinge side of the element (C). When securing, ensure that the point can absorb tensile forces.
Place permanent wedging at the top of the jambs in the closing side of the element (D); when securing, this wedging must ensure that the point can absorb compressive forces. A permanent packer by the lower jamb on the closing side will ensure a stronger installation (E). Ensure tensile forces can be absorbed.
For increased security and strength a permanent packer can be placed behind ironmongery fix points and locking points.
The jambs must be plumb and square.
The closing side must be adjusted so it fits the sash and closes fully with a tight seal.
When fitting double doors, it is important that the two door leafs have tight seal where they meet and that the head of the two doors are aligned perfectly.
The head can under no circumstances bend down.
The tolerance on diagonal measurements is ±2 mm.
Permanent wedging on the frame head may only be used if the load from any window/door element above does not subject the element to stress apart from on the jambs and mullions.
Wedging material must be moisture-resistant, 40 mm wide and be placed max. 20 mm behind the frame’s front edge and support both PUR and timber. Depending on sealant placement, it is recommended to use anti slip tape on the packing material according to the FSO sealing guidelines.
Jamb/Head
Sill
Wedging material must be moisture resistant and support the full width of the threshold. Permanent wedging at the head and the jambs must be moisture resistant, 40 mm wide and support both timber and idealcore. Depending on sealant placement, it can be recommended to apply anti-slip tape to packing material, according to the FSO sealing recommendations.
Never use the hammer drill setting when pre-drilling through the PUR frame. This will result in material being knocked off the reverse side and thus significantly impair the fixing of the frame. Never screw fix through the frame without wedges in place.
If the window is fixed using brackets/cramps the bracket must be fixed into both the timber and PUR of the frame with screws, as shown below. 150 mm from the corners and at centres with a distance of no more than 600 mm between brackets. For element widths under 900 mm fixing in head and sill can be omitted.
Place adjoining elements with a spacing of 8 mm and screw them together using 5 x 90 mm wood screws. Apply mastic between the window elements and spacer strip/ cross tongue. Seal externally using 15/7-12 CompriBand or mastic.

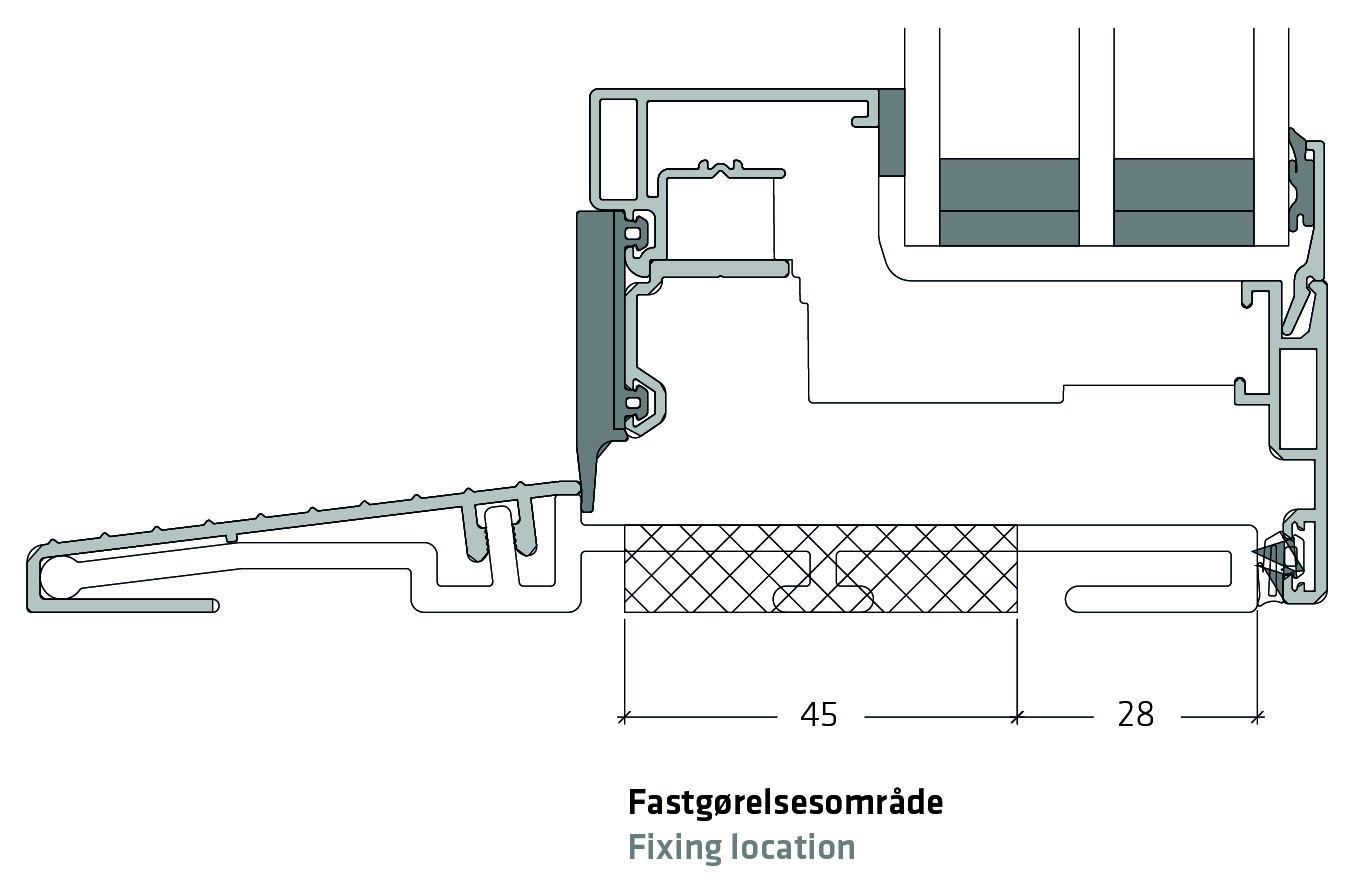

Below is show the areas where the PUR frame has been treated for optimum sealant adhesion. If mastic applied outside of the marked areas the frame must be cleaned with acetone to ensure sufficient adhesion.
After installation all drilling dust is removed and locking points are lubricated. This will ensure long lasting trouble free operation.
Weather seals can be rubbed with a silicone stick.
All drilling dust must be removed from frame and ironmongery, when installation has finished. Then lubricate all closing points and moving parts to ensure optimal operation. We recommend brushing the weather seals with a silicone stick.
To spare the ventilation ironmongery during construction, the TurnPlus ventilation keep is equipped with a red plastic blocker that disables the ventilation position. When construction is finished, remove the red blocker before using the window/door.
At the bottom hinge it is possible to adjust the height of the door/window sash to ensure correct fitment in the frame.
Horizontal adjustment of the sash.
The mushroom bolts can be adjusted to maintain the correct pressure on the frame.
When closed, the sash is held up by a sash support. The sash support can be adjusted to avoid the sash from dropping.
Adjustment of the friction brake.
The outer aluminium sash and frame surfaces are affected by the surrounding environment such as city and industrial areas with high traffic intensity and air pollution and coastal areas with salty air which soil and affect the surface more than clean country air.
Cleaning should be done on a regular basis and at least twice a year, maybe in connection with window cleaning. Wash sash and frame surfaces in lukewarm water with a neutral cleaning fluid such as car shampoo and wipe surfaces and edges with a cloth.
The external aluminium profiles are as standard chrome free and surface treated with a polyester powder coating. This treatment offers a very strong and weather-resistant surface requiring only limited maintenance. In practice, this means cleaning it a couple of times a year with a soft brush or cloth and lukewarm water with a neutral cleaning fluid such as car shampoo.
Minor damage to the surface treatment will not affect the element’s durability since a natural oxide film quickly forms on exposed aluminium, preventing corrosion and white rust attacks.
However, for cosmetic reasons it may be desirable to repair such damage and Idealcombi’s Technical Department would be happy to provide advice and guidance. Call us on 01582 860 940.
The outer aluminium covering on our products in timber|aluminium can alternatively be supplied with anodic treatment. Once the aluprofiles have been chemically prepared and cleaned thoroughly, they undergo an electrolytic process. Direct current is applied to the profiles which become anodised, thus turning the surface metal into oxide. This process continues until the desired film thickness has been achieved.
An anodised surface treatment provides excellent corrosion resistance in most environments while keeping the surface very smooth and dirt repellent. On top of that it has the ability to preserve what we call a “new” appearance.
Anodised alu-profiles are almost maintenance-free provided that the surface is cleaned a couple of times a year with a soft brush or cloth and lukewarm water with a neutral cleaning fluid such as car shampoo.
When cleaning the wooden parts with lukewarm water and a neutral cleaning fluid, check for any damage or wear to the surface treatment.
All wood profiles from Idealcombi are quality optimised and finger jointed/ laminated ensuring elimination of at least 95% of all knots, star shakes and other defects. This gives the wood profiles greater stability and significantly reduces problems such as knot discoloration, yellow blotches and resin lumps in the surface treatment.
Please bear in mind that wood is a natural material and as such resin lumps may form underneath the paint and discoloration from the wood treatment may occur – even with the best surface treatment.
Small droplets of resin penetrating the paint can easily be removed with rubbing alcohol.
If small lumps of resin form underneath the paint, leave them for 2-3 years or until the resin has penetrated the surface treatment, then remove them with rubbing alcohol or, in more serious cases, scrape and sandpaper them away before applying new paint.
Yellow discoloration, which can normally be removed with rubbing alcohol, often occurs on light colour finishes.
The above mentioned problems are often more pronounced during hot summers (tropic climates) and may occur rapidly particularly on facades facing south.
For further information please see Danish Window Certification appendix 14, page 28 of the technical regulations which deal with “Expected outcome of industrially surface treated timber elements”.
Efficient preparation is key for the durability of the treatment.
Start by washing the area thoroughly with sugar soap or similar cleaning product. Loose paint is scraped off and any resin can be removed with white spirit.
Any exposed timber is primed with a clear wood primer.
When dry, sand down the primer on all flat surfaces and remove any sanding dust with a brush or cloth.
Finish of with two coats in the correct colour.
We recommend using a water based product similar to the one originally used.
We are happy to recommend nearest dealer of a suitable product.
• Always read the instructions on the chosen paint before commencing work.
• All surfaces and grooves must be dry and free from dirt and dust before commencing work.
• Neither weather strips nor moving parts in hinges and espags can be painted. Please note that seals are loosely fitted, and can be removed before painting, and refitted when the paint is dry.
• DVC’s guarantee label must not be painted.
• Masking tape is recommended for best finis along edges.
• Always use a good paint brush in a suitable width.
• Always have a cloth and plastic bag at hand. Use the cloth to dry off incorrect strokes and drips from the brush. Use the plastic bag to wrap around your brush if your work is interrupted for a short period of time.
• Remember that hinged sashes must not be closed before the paint is completely dry.
It is important to lubricate and maintain all ironmongery to ensure easy operation and function of Idealcombi’s windows and doors, this is also a requirement to maintain the product guarantee.
For lubrication, use an acid-free lubricant followed by an acid-free spray grease. Lubrication can be made with an oil can, a syringe or a spray can with a thin pipe. For further advice on lubrication, please call Idealcombi’s Service Department on tel. 01582 860 940.
Lubrication and maintenance frequency depend on the use and the effect weather conditions, pollution, etc. have on the ironmongery.
We know from experience that ironmongery used in for instance city and industrial areas, areas with high traffic intensity and coastal areas with salty air should be lubricated and maintained more often than ironmongery in a less harsh environment.
Generally, all moveable parts on hinges and closing/locking ironmongery should be lubricated as required, however, at least once a year.
Hinges should be lubricated in all joints during repeated activation, so that the lubricant reaches the movable arms.
The joints should be lubricated on the outside and in the crack between the arms. Use an easily penetrating acid-free oil followed by a long-lasting acid-free grease in spray form.
Hinges should be lubricated in all joints during repeated activation, so that the lubricant reaches the movable arms.
The joints should be lubricated on the outside and in the crack between the arms. Use an easily penetrating acid-free oil followed by a long-lasting acid-free grease in spray form.
Sliding surfaces, hinge sliders and sliding blocks should be maintained in a clean state to facilitate sliding.
It is possible to apply stearin or a dry lubrication product on the sliding surfaces to facilitate friction. Never use oil on these surfaces as it binds dust and dirt to the surface.
For vertical rails on reversible windows, the lubrication must be Shell Cassida RLS 2.
All sliding surfaces are made from anodised aluminium and must be cleaned regularly depending on climatic conditions and the degree of air pollution. We recommend that the surface is wiped with a cloth or sponge.
Never use emery cloth, steel wool, soda or other cleaning or abrasive agents containing alkali or acid on these surfaces. Only use neutral cleaning fluids such as car shampoo.
Should be lubricated in all moving parts, lock boxes and by bolts and keeps while activating the mechanism continuously, to ensure the lubricant penetrates in between all moving parts.
Should not normally be lubricated. The tracks should always be kept clean.
During the annual maintenance service, cleaning and lubricating ironmongery, weatherstrips and glazing gaskets should be inspected.
Our weatherstrips are made from EPDM rubbers and several of them in a combination with a solid foot and a soft cellular sealing surface.
The weatherstrips do not require any special maintenance but should be kept clean and free of dirt. This is done by wiping them off once a year with lukewarm water and a neutral cleaning fluid using a cloth. We recommend brushing the weatherstrips with a silicone stick to minimize friction during operation.
Also check that the weather strips are positioned and secured correctly and that they have maintained their sealing function.
All weatherstrips are loosely fitted in a perimeter groove making them easy to remove and install on most element types if they are damaged and need replacement – or in connection with surface treatment maintenance.
Never paint weatherstrips or brush them with wood preservatives/oils.
Glazing gaskets are made of EPDM/cell rubbers and doe not require any special maintenance but should be kept clean and free of dirt. This is done by wiping them off once a year with lukewarm water and a neutral cleaning fluid using a cloth.
We are using cookies to give you the best experience on our website.
You can find out more about which cookies we are using or switch them off in settings.
This website uses cookies so that we can provide you with the best user experience possible. Cookie information is stored in your browser and performs functions such as recognising you when you return to our website and helping our team to understand which sections of the website you find most interesting and useful.
You can adjust all of your cookie settings by navigating the tabs on the left hand side.
Strictly Necessary Cookie should be enabled at all times so that we can save your preferences for cookie settings.
If you disable this cookie, we will not be able to save your preferences. This means that every time you visit this website you will need to enable or disable cookies again.
This website uses Google Analytics to collect anonymous information such as the number of visitors to the site, and the most popular pages.
Keeping this cookie enabled helps us to improve our website.
