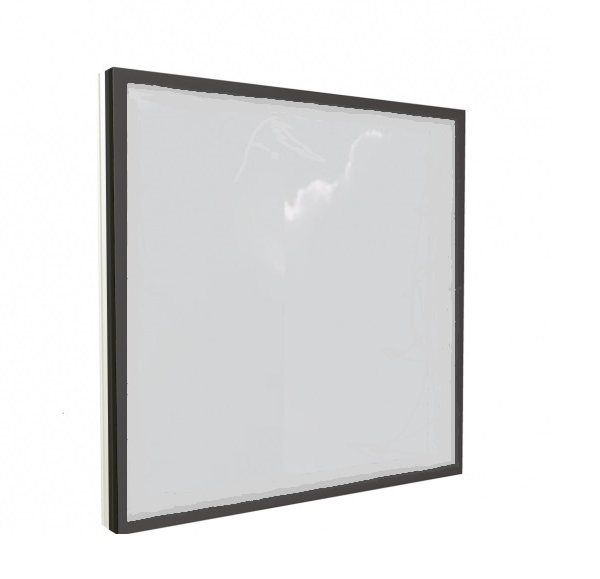

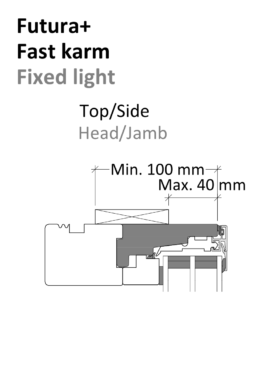

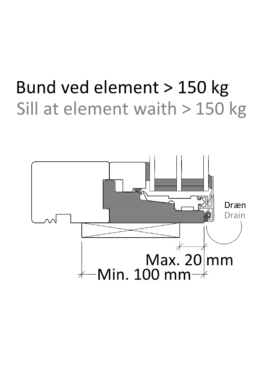

Futura+ Fixed light

Use:

The Fixed light is most often used in conjunction with other windows with opening sashes. The fixed light is used only as a light source.

Function:

In the fixed light, glass is mounted directly in the frame and is without any kind of opening function.

Product information:
U_w: Triple: 0,68 W/m²K
Glass dimensions: 48 mm (4-18-4-18-4)
Styling bar: 22/22 mm, 53 mm and 116 mm
Frame dimensions: 50 x 149 mm / 175 mm

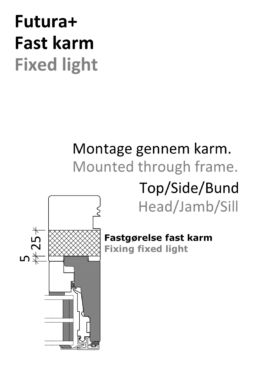

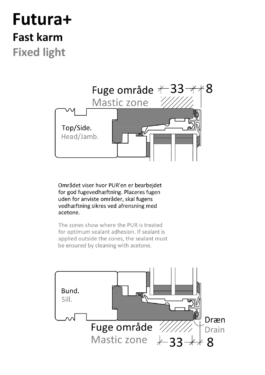

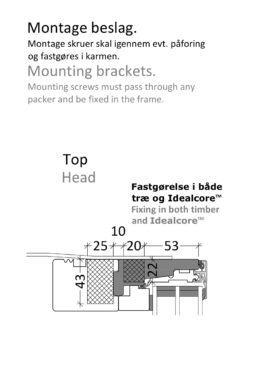

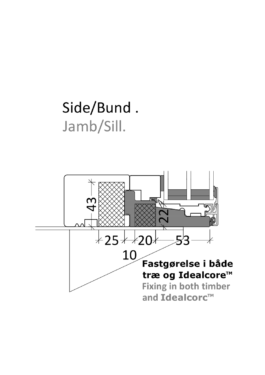

Drawings

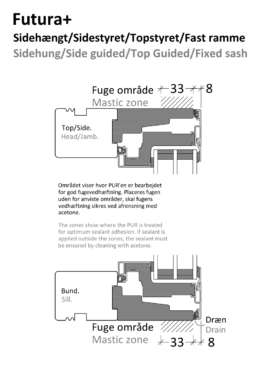

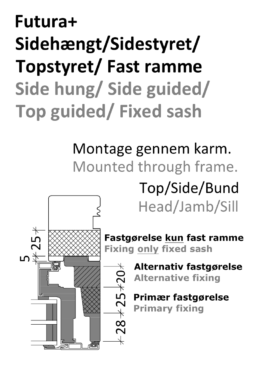

PLU_01_3 | Top guided-, Side hung-, Side guided windows, Fixed sash and Fixed light - 3-layer panes | dwg | pdf |
Solutions

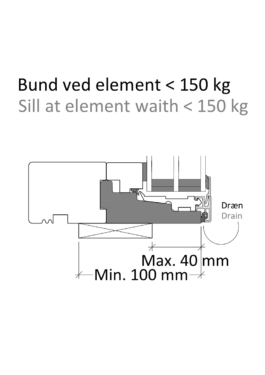

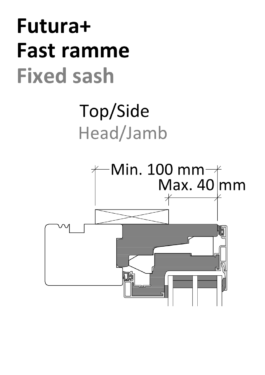

- Packers and Couplings

  PLU-PFO021 | Cross tongue, 149/175 mm frame | dwg | pdf |
  PLU-PFO030 | Standard packer for drip, 18 x 45 mm (tilt-turn) | dwg | pdf |
  PLU-PFO031 | Standard internal packer, 18 mm aluminium packer (tilt-turn) | dwg | pdf |
  PLU-PFO032 | Standard external packer, 19 x 50 mm + 18 mm aluminium packer (tilt-turn) | dwg | pdf |
  PLU-PFO033 | Standard packer - Cross tonque CBF1613 + 8 x 30 mm | dwg | pdf |
  PLU-PFO034 | Vertical/horizontal connection, Tilt/turn and outwardopening built together | dwg | pdf |
  PLU-PFO039 | Standard packers for drip | dwg | pdf |
  PLU-PFO042 | Horizontal connection, inward opening Frame ic door/Futura+, 149 mm | dwg | pdf |
  PLU-PFO043 | Horizontal connection, inward opening Frame ic door/Futura+, 175 mm | dwg | pdf |
  PLU-PFO044 | Horizontal connection, outward opening Frame ic door/Futura+ | dwg | pdf |
  PLU-PFO045 | Vertical connection, outward opening Frame ic door/Futura+ | dwg | pdf |
  PLU-PFO046 | Horizontal connection, outward opening Frame ic door/Futura+i indadgående | dwg | pdf |
  PLU-PFO047 | Vertical connection, inward opening Frame ic door/Futura+i inward opening, 149 mm | dwg | pdf |
  PLU-PFO048 | Horizontal connection, inward opening Frame ic door/Futura+i inward opening, 149 mm | dwg | pdf |
  PLU-PFO049 | Vertical connection, inward opening Frame ic door/Futura+i inward opening, 175 mm | dwg | pdf |
  PLU-PFO050 | Horizontal connection, inward opening Frame ic door/Futura+i inward opening, 175 mm | dwg | pdf |
  PLU-PFO051 | Standard connection - Cross tongue, Fut+i and sliding door w/ low threshold, fixed part | dwg | pdf |
  PLU-PFO052 | Standard connection - Futura+i and top swing reversible | dwg | pdf |
  PLU-PFO053 | Coupling with packer - Futura+ fixed sash/IC sliding door, sliding part | dwg | pdf |
  PLU-PFO054 | Coupling with packer - Futura+ fixed sash/IC Sliding door, fixed part | dwg | pdf |
  PLU-PFO055 | Coupling with packer - Futura+ fixed sash/sliding door with 70 mm threshold | dwg | pdf |
  PLU-PFO056 | Standard packers 19x100 mm - Tilt/turn | dwg | pdf |
  PLU-PFO104 | Acoustic windows - Sound attenuation | dwg | pdf |
  PLU-PFO105 | 20mm Packers at Futura+ windows and doors | dwg | pdf |
  PLU-PFO107 | 20mm Packers ONLY at Futura+ sidlights with opening part for slidingdoor with 70mm threshold | dwg | pdf |
- Corner solutions
  - 45°

    PLU-HJL103 | Standard Corner solution 45° - Frames with wedge, 149/175 mm frame | dwg | pdf |
    PLU-HJL110 | Standard Corner solution 45° - Sliding Door, 149/175 mm frame | dwg | pdf |
    PLU-HJL104 | Standard Corner solution 45° - Frame to wall, 149/175 mm frame | dwg | pdf |
    PLU-HJL114 | Standard Corner solution 45° - Bevelled frame and wedge, 149/175 mm frame | dwg | pdf |
  - 90°

    PLU-HJL101 | Standard Corner solution 90° - Rebated frame, 149/175 mm frame | dwg | pdf |
    PLU-HJL105 | Standard Corner solution 90° - Internal corner, 149/175 mm frame | dwg | pdf |
    PLU-HJL108 | Standard Corner solution 90° - Sliding door - Rebated frame, 149/175 mm frame | dwg | pdf |
    PLU-HJL111 | Standard Corner solution 90° - Sliding Door with internal corner, 149/175 mm frame | dwg | pdf |
    PLU-HJL100 | Standard Corner solution 90° - Glass to glass, 149/175 mm frame | dwg | pdf |
    PLU-HJL102 | Standard Corner solution 90° - 149/175 mm frame | dwg | pdf |
    PLU-HJL107 | Standard Corner solution 90° - Bevelled frames, 149/175 mm frame | dwg | pdf |
    PLU-HJL109 | Standard Corner solution 90° - Sliding door, 149/175 mm frame | dwg | pdf |
    PLU-HJL113 | Standard Corner solution 90° - Sliding Door - Bevelled frames, 149/175 mm frame | dwg | pdf |
    PLU-HJL121 | Standard Corner solution 90° - Outwart opening and tilt/turn - Internal corner, 149/175 mm frame | dwg | pdf |
  - 180°

    PLU-HJL106 | Standard Corner solution 180° - Flashing, 149/175 mm frame | dwg | pdf |
    PLU-HJL112 | Standard Corner solution 180° - Sliding Door - Flashing, 149/175 mm frame | dwg | pdf |
- Grooves and Rebates

  FRAic-NOT104 | IC sliding door - Standard groove and rebate | dwg | pdf |
  PLU-NOT100 | Standard aluminium groove for all products - Internal lining | dwg | pdf |
  PLU-NOT101 | Standard groove for internal lining | dwg | pdf |
  PLU-NOT102 | Standard rebate and bevelled frame | dwg | pdf |
- Panels and Spandrels

  PLU-FYL100 | Futura+ - Sandwich panel | dwg | pdf |
  PLU-FYL102 | Futura+ - Fully insulated panel with 12 mm back bord | dwg | pdf |
  PLU-FYL103 | Ventilated spandrels - Fully insulated panel with 12 mm back bord | dwg | pdf |
Min./Max. Dimensions

UK-PLU-GRA006 | pdf |
